GKI Poultry Water Pressure Regulator

GKI Poultry Water Pressure Regulator

This professional water flow regulator is an essential component for poultry farm drinking systems, engineered to deliver precise water control and consistent flow rates. The robust yellow regulator features a substantial 175mm diameter body and operates optimally within a 0.2-0.3 MPa working pressure range, factory tested at 0.35 MPa for reliability. At 0.2 MPa supply pressure, it provides adjustable flow rates from 8,800 ml/min to 17,300 ml/min depending on the level pipe setting (20-50 cm). The system accommodates impressive coverage with single supply lines up to 110m and two-way supply configurations extending to 120m total length. The complete kit includes the regulator unit, connecting pipes, and all necessary installation components. The precisely engineered dimensions (φ19mm, φ14.5mm, φ63mm connections) ensure compatibility with standard poultry watering systems. This durable regulator maintains consistent water pressure and flow throughout your entire watering line, helping maintain optimal hydration for your flock.

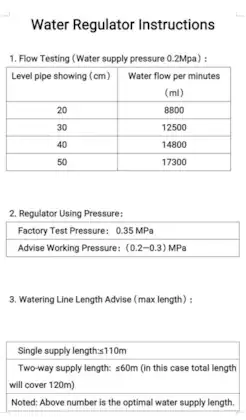

FLOW CAPACITY: Delivers water flow from 8800ml to 17300ml per minute, with adjustable level pipe settings from 20cm to 50cm height

WORKING PRESSURE: Operates optimally between 0.2-0.3 MPa pressure range, factory tested at 0.35 MPa for reliable performance

COVERAGE RANGE: Supports single supply length up to 110m or two-way supply up to 60m per side, covering total length of 120m

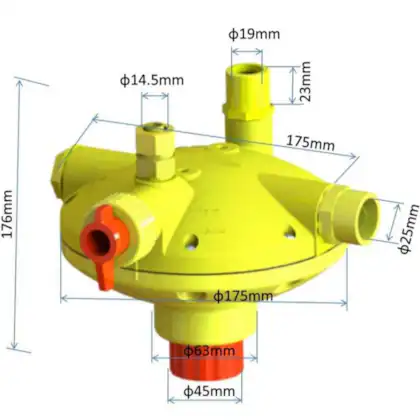

DIMENSIONS: Features 175mm diameter body with 25mm outlet port and 19mm/14.5mm connection ports for versatile installation

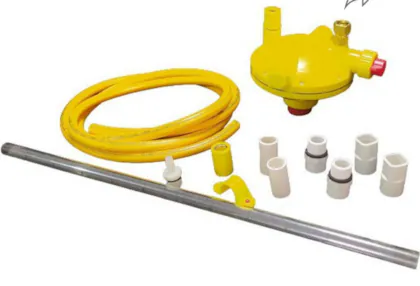

COMPLETE KIT: Includes regulator unit, connection hose, mounting rod, and multiple connection adaptors for comprehensive installation

Product Information
